I wrote this post because I had to re-learn OCR recently. I kept forgetting the details, configs, and gotchas — so this is my reference to stay sharp. If you’re in the same boat, copy this into a Jupyter notebook or run the code cells as-is.
I needed OCR again recently and realized I’d forgotten a bunch of the practical bits: - Which --psm to use in Tesseract? - What’s the fastest path to “good enough” when the scan is crooked or low DPI? - When should I reach for EasyOCR instead? This post is my “drop-in” reference — with code I can paste right into a Jupyter notebook.
Note: Tesseract requires the native binary in addition to the Python wrapper
pytesseract.
macOS (Homebrew):
brew install tesseract
pip install pytesseract easyocr opencv-python-headless pillow numpy matplotlibUbuntu / Debian:
sudo apt-get update && sudo apt-get install -y tesseract-ocr
pip install pytesseract easyocr opencv-python-headless pillow numpy matplotlibWindows: 1. Install Tesseract from the official Windows installer (add to PATH during setup). 2. Then:
pip install pytesseract easyocr opencv-python pillow numpy matplotlibimport pytesseract, sys, os, platform
print("Python:", sys.version)
print("Platform:", platform.platform())
print("pytesseract:", pytesseract.__version__)Python: 3.12.2 | packaged by conda-forge | (main, Feb 16 2024, 20:54:21) [Clang 16.0.6 ]
Platform: macOS-15.5-arm64-arm-64bit
pytesseract: 0.3.13--psm (page segmentation) and --oem (engine mode) for accuracy and speed.--psm cheat sheet (Tesseract)--psm 6: Assume a single uniform block of text (good for paragraphs).--psm 11: Sparse text (no particular order) — useful for screenshots / scattered text.--psm 3: Fully automatic page segmentation (no OSD) — general default when unsure.We’ll generate a synthetic text image (so this notebook is self-contained), then run Tesseract and EasyOCR on it.
from PIL import Image, ImageDraw, ImageFont, ImageFilter
import numpy as np
import cv2
import matplotlib.pyplot as plt
import pytesseract
# --- Generate a synthetic image with text ---
W, H = 1200, 400
img = Image.new("RGB", (W, H), "white")
draw = ImageDraw.Draw(img)
# Try to grab a font; fall back if not available.
def get_font(size=48):
# These paths are heuristic; adjust to your system if needed.
candidates = [
"/System/Library/Fonts/Supplemental/Arial.ttf",
"/usr/share/fonts/truetype/dejavu/DejaVuSans.ttf",
"C:/Windows/Fonts/arial.ttf",
]
for p in candidates:
try:
return ImageFont.truetype(p, size=size)
except Exception:
pass
return ImageFont.load_default()
font = get_font(48)
text = "Invoice #19845 — Amount Due: $1,284.30\nDue Date: 2025-10-15\nPlease remit to: Zeetō Group"
draw.text((50, 80), text, font=font, fill=(0,0,0))
# Add mild rotation and noise to simulate a scan
img = img.rotate(-2, expand=True, fillcolor="white")
noisy = np.array(img).astype(np.uint8)
noise = np.random.normal(0, 6, noisy.shape).astype(np.int16)
noisy = np.clip(noisy.astype(np.int16) + noise, 0, 255).astype(np.uint8)
noisy_img = Image.fromarray(noisy).filter(ImageFilter.GaussianBlur(0.6))
plt.figure(figsize=(8,3))
plt.imshow(noisy_img); plt.axis('off'); plt.title('Synthetic scan')
plt.show()
# --- Minimal Tesseract ---
gray = cv2.cvtColor(np.array(noisy_img), cv2.COLOR_RGB2GRAY)
tess_config = "--oem 3 --psm 6 -l eng"
tess_text = pytesseract.image_to_string(gray, config=tess_config)
print("Tesseract says:\n", tess_text)Tesseract says:
Invoice #19845 — Amount Due: $1,284.30
Due Date: 2025-10-15
Please remit to: Zeeto Group
# --- Minimal EasyOCR ---
import easyocr
reader = easyocr.Reader(['en'], gpu=False) # set gpu=True if CUDA available
results = reader.readtext(np.array(noisy_img))
easy_text = "\n".join([r[1] for r in results])
print("\nEasyOCR says:\n", easy_text)Using CPU. Note: This module is much faster with a GPU.
EasyOCR says:
Invoice #19845
Amount Due: $1,284.30
Due Date: 2025-10-15
Please remit to: Zeeto
GroupYou should already get decent results. If not, jump to the pipeline below — it will almost always help.
Real documents are messy: skewed, low DPI, scans with lines and stamps, or multi-column layouts. Below is a compact pipeline you can adapt anywhere.
import numpy as np
import cv2
from typing import Tuple, List
def to_gray(img):
if img.ndim == 3:
return cv2.cvtColor(img, cv2.COLOR_RGB2GRAY)
return img
def clahe(gray, clip=3.0, tile=(8,8)):
c = cv2.createCLAHE(clipLimit=clip, tileGridSize=tile)
return c.apply(gray)
def denoise(gray, ksize=3):
return cv2.GaussianBlur(gray, (ksize, ksize), 0)
def adaptive_binarize(gray, block=31, C=10):
return cv2.adaptiveThreshold(gray, 255, cv2.ADAPTIVE_THRESH_GAUSSIAN_C,
cv2.THRESH_BINARY, block, C)
def deskew(binary):
# Invert: text as 1s
inv = 255 - binary
coords = np.column_stack(np.where(inv > 0))
if coords.size == 0:
return binary, 0.0
rect = cv2.minAreaRect(coords)
angle = rect[-1]
if angle < -45:
angle = 90 + angle
# Rotate
(h, w) = binary.shape[:2]
M = cv2.getRotationMatrix2D((w//2, h//2), angle, 1.0)
rotated = cv2.warpAffine(binary, M, (w, h), flags=cv2.INTER_CUBIC, borderMode=cv2.BORDER_REPLICATE)
return rotated, angle
def remove_lines(binary, scale=40):
# Remove horizontal and vertical lines
horiz = binary.copy()
vert = binary.copy()
cols = horiz.shape[1]
h_size = max(1, cols // scale)
h_kernel = cv2.getStructuringElement(cv2.MORPH_RECT, (h_size, 1))
horiz = cv2.erode(horiz, h_kernel, iterations=1)
horiz = cv2.dilate(horiz, h_kernel, iterations=1)
rows = vert.shape[0]
v_size = max(1, rows // scale)
v_kernel = cv2.getStructuringElement(cv2.MORPH_RECT, (1, v_size))
vert = cv2.erode(vert, v_kernel, iterations=1)
vert = cv2.dilate(vert, v_kernel, iterations=1)
mask = cv2.bitwise_or(horiz, vert)
cleaned = cv2.bitwise_and(binary, cv2.bitwise_not(mask))
return cleaned
def find_text_blocks(binary, min_area=800):
# Find contours -> bounding boxes for text regions
cnts, _ = cv2.findContours(255 - binary, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE)
boxes = []
for c in cnts:
x, y, w, h = cv2.boundingRect(c)
if w*h >= min_area:
boxes.append((x, y, w, h))
# Sort top-to-bottom, then left-to-right
boxes.sort(key=lambda b: (b[1], b[0]))
return boxes
def visualize_boxes(img_rgb, boxes):
vis = img_rgb.copy()
for (x,y,w,h) in boxes:
cv2.rectangle(vis, (x,y), (x+w,y+h), (0,255,0), 2)
return visimport matplotlib.pyplot as plt
orig_rgb = np.array(noisy_img) # from Part 1
gray = to_gray(orig_rgb)
eq = clahe(gray)
den = denoise(eq, ksize=3)
bin_img = adaptive_binarize(den, block=31, C=10)
desk, angle = deskew(bin_img)
nolines = remove_lines(desk, scale=40)
blocks = find_text_blocks(nolines)
print(f"Deskew angle: {angle:.2f} degrees; blocks found: {len(blocks)}")

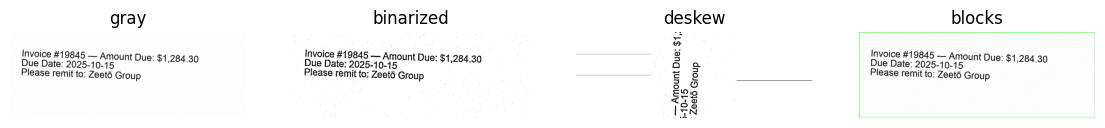

fig, axs = plt.subplots(1,4, figsize=(14,3))
axs[0].imshow(gray, cmap='gray'); axs[0].set_title('gray'); axs[0].axis('off')
axs[1].imshow(bin_img, cmap='gray'); axs[1].set_title('binarized'); axs[1].axis('off')
axs[2].imshow(desk, cmap='gray'); axs[2].set_title('deskew'); axs[2].axis('off')
axs[3].imshow(visualize_boxes(orig_rgb, blocks)); axs[3].set_title('blocks'); axs[3].axis('off')
plt.show()Deskew angle: 90.00 degrees; blocks found: 1
We’ll OCR either the whole cleaned page or per block and concatenate (often better for multi-column pages).
import pytesseract, easyocr
tess_config = "--oem 3 --psm 6 -l eng"
# Whole-page OCR (Tesseract)
tess_text_clean = pytesseract.image_to_string(nolines, config=tess_config)
# Block-wise OCR (Tesseract)
block_texts = []
for (x,y,w,h) in blocks:
roi = nolines[y:y+h, x:x+w]
txt = pytesseract.image_to_string(roi, config=tess_config)
block_texts.append(txt.strip())
tess_block_concat = "\n".join([t for t in block_texts if t])
# EasyOCR on the cleaned page
reader = easyocr.Reader(['en'], gpu=False)
easy_results = reader.readtext(orig_rgb) # original
easy_results_clean = reader.readtext(cv2.cvtColor(nolines, cv2.COLOR_GRAY2RGB)) # cleaned
easy_text_clean = "\n".join([r[1] for r in easy_results_clean])
print("\n[Tesseract whole-page]\n", tess_text_clean)
print("\n[Tesseract block-wise]\n", tess_block_concat)
print("\n[EasyOCR cleaned]\n", easy_text_clean)Using CPU. Note: This module is much faster with a GPU.
[Tesseract whole-page]
i
4 a,
‘ ny
- 1
a
nny
«a ce
ray
[Tesseract block-wise]
i
4 a,
‘ ny
- 1
a
nny
«a ce
ray
[EasyOCR cleaned]
This isn’t a full OCR benchmark — just a quick way to see if you’re moving in the right direction. Replace expected with your known text.
from difflib import SequenceMatcher
def similarity(a, b):
return SequenceMatcher(None, a, b).ratio()
expected = "Invoice #19845 — Amount Due: $1,284.30\nDue Date: 2025-10-15\nPlease remit to: Zeetō Group"
scores = {
"tesseract_minimal": similarity(expected, tess_text),
"tesseract_clean_page": similarity(expected, tess_text_clean),
"tesseract_blockwise": similarity(expected, tess_block_concat),
"easyocr_minimal": similarity(expected, easy_text),
"easyocr_clean": similarity(expected, easy_text_clean),
}
for k, v in scores.items():
print(f"{k:24s} -> {v:.3f}")tesseract_minimal -> 0.983
tesseract_clean_page -> 0.100
tesseract_blockwise -> 0.084
easyocr_minimal -> 0.954
easyocr_clean -> 0.000Expect cleaned variants to beat the minimal ones. If not, tweak
CLAHEclip limit, adaptive threshold window (block), and--psm.
block).--psm: test 6, 3, and 11. Results can flip depending on layout.extract_text_robustHere’s a compact helper you can paste into any notebook or script.
def extract_text_robust(img_rgb, method="tesseract", lang="eng"):
gray = to_gray(img_rgb)
eq = clahe(gray, clip=3.0, tile=(8,8))
den = denoise(eq, ksize=3)
bin_img = adaptive_binarize(den, block=31, C=10)
desk, _ = deskew(bin_img)
nolines = remove_lines(desk, scale=40)
if method == "tesseract":
cfg = f"--oem 3 --psm 6 -l {lang}"
return pytesseract.image_to_string(nolines, config=cfg)
elif method == "easyocr":
rdr = easyocr.Reader([lang], gpu=False)
return "\n".join([r[1] for r in rdr.readtext(cv2.cvtColor(nolines, cv2.COLOR_GRAY2RGB))])
else:
raise ValueError("method must be 'tesseract' or 'easyocr'")orig_rgb with cv2.imread('path/to/scan.png')[:, :, ::-1] (to convert BGR→RGB).Happy OCR’ing!
